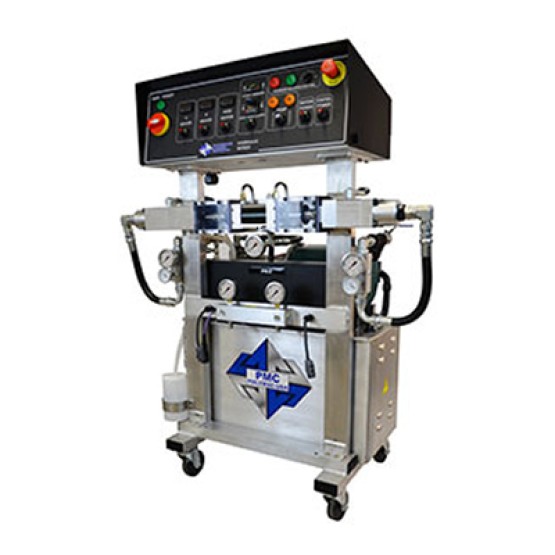

PHX-2 Economy range Hydraulic units for Coating
Product by : Polyurea Proportioning Machinery
PHX-2 3000 psi (207 bar) – Ideal for Use in Plural Component Coatings Applications
Offering the “Most Affordable Hydraulic Proportioner with Horizontal Pumps”
Includes Pressure Balance Control System, Inlet Monitoring and Count Down Shutoff
Features
| PHX-2 | |
| Output | : 1.7 gal/min (6.43 liters/min) |
| Max Working Pressure | : 3,000 psi (206 bar) |
| Max Hose Length | : 210 ft (64 m) w/70V Trans 310 ft (94.5 m) w/90V Trans 410 ft (121.9 m) w/120V Trans |
| Heater Wattage | : 14,000 watts Total (Single Heater) |
| Hose Heating Power | : 70 Volt, 90 Volt or 120 Volt |
| Max Fluid Temperature | : 190 F (87.7 C) |
| Air Consumption @ 100 psi (6.9 bar) |
: Not Applicable |
| Main Voltage | : 1 x 208-230V, 50/60 Hz |
| Electrical @ | : 108A–14,000W heaters |
| Main Voltage | : 3 x 208-230V, 50/60 Hz, 3 x 380V, 50/60 Hz |
| Electrical @ | : 69A–14,000W heaters |
| Dimensions | : 44”w x 22”d x 54”h (111 cm x 55 cm x 137 cm) |
| Weight | : 415 lbs (188 kg) |
| Documents |
: Brochure Operating & Parts Manual Schematics |
